Products

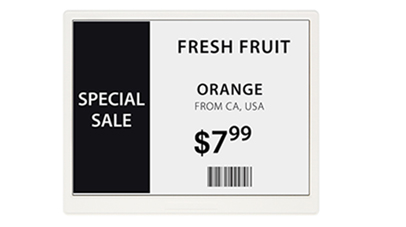

FNT75

FNT75 Specification

Model FNT75
Display Type e-Paper 7.5" Matrix
Display Active Area 163.20 x 97.92 mm
Display Resolution 640 x 384 pixel / 100 dpi
Display Color B/W, B/W/R, B/W/Y
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 4
Battery Life 5 Years @Room Temperature (2 updates/Day)
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 117.1mm x 175mm x 13.2mm
Weight 184.0g

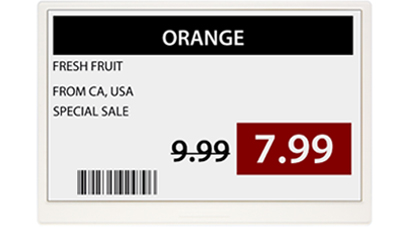

FNT58

FNT58 Specification

Model FNT58
Display Type e-Paper 5.8" Matrix
Display Active Area 118.80 x 88.26 mm
Display Resolution 600 x 448 pixel / 128 dpi
Display Color B/W, B/W/R, B/W/Y
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 4
Battery Life 5 Years @Room Temperature (2 updates/Day)
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 130.2mm x 105.4mm x 13.2mm
Weight 124.6g

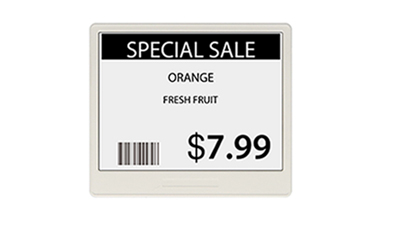

FNT42

FNT42 Specification

Model FNT42
Display Type e-Paper 4.2" Matrix
Display Active Area 84.80 x 63.60 mm
Display Resolution 400 x 300 pixel / 120 dpi
Display Color B/W, B/W/R, B/W/Y
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 3
Battery Life 5 Years @Room Temperature (2 updates/Day)
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 95.8mm x 82.9mm x 13.2mm
Weight 68.9g

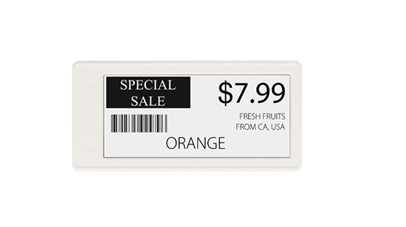

FNT29

FNT29 Specification

Model FNT29
Display Type e-Paper 2.9" Matrix
Display Active Area 66.90 x 29.06 mm
Display Resolution 296 x 128 pixel / 112 dpi
Display Color B/W, B/W/R, B/W/Y
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 2
Battery Life 5 Years @Room Temperature (2 updates/Day)
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 84.9mm x 41.5mm x 12.4mm
Weight 27.3g

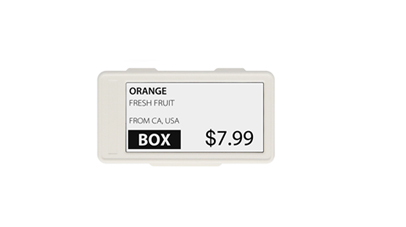

FNT22

FNT22 Specification

Model FNT22
Display Type e-Paper 2.2" Matrix
Display Active Area 48.55 x 23.71 mm
Display Resolution 212 x 104 pixel / 110 dpi
Display Color B/W, B/W/R, B/W/Y
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 2
Battery Life 5 Years @Room Temperature (2 updates/Day)
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 65.1mm x 34 mm x 12.4mm (H)
Weight 18.3g

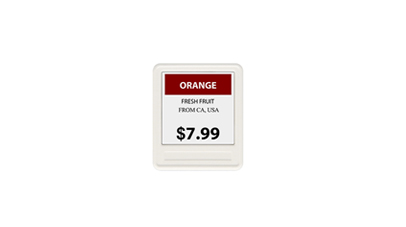

FNT16

FNT16 Specification

Model FNT16
Display Type e-Paper 1.6" Matrix
Display Active Area 27.51 x 27.51 mm
Display Resolution 152 x 152 pixel / 140 dpi
Display Color B/W, B/W/R, B/W/Y
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 1
Battery Life 5 Years @Room Temperature (2 updates/Day)
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 36.6mm x 43.2mm x 12.4mm (H)
Weight 12.3g

FNT42F

FNT42F Specification

Model FNT42F
Display Type e-Paper 4.2" Matrix / Freezer
Display Active Area 84.80 x 63.60 mm
Display Resolution 400 x 300 pixel / 120 dpi
Display Color B/W
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 3
Battery Life 1.5 Years @Freezer Temperature (1 updates/Day)
Operating Temperature -25°C ~ 10°C / -13°F~50°F
Size 95.8mm x 82.9mm x 13.2mm
Weight 68.9g

FNT29F

FNT29F Specification

Model FNT29F
Display Type e-Paper 2.9" Matrix / Freezer
Display Active Area 66.90 x 29.06 mm
Display Resolution 296 x 128 pixel / 112 dpi
Display Color B/W
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 2
Battery Life 1.5 Years @Freezer Temperature (1 updates/Day)
Operating Temperature -25°C ~ 10°C / -13°F~50°F
Size 84.9mm x 41.5mm x 12.4mm
Weight 27.3g

FNT22F

FNT22F Specification

Model FNT22F
Display Type e-Paper 2.2" Matrix / Freezer
Display Active Area 48.55 x 23.71 mm
Display Resolution 212 x 104 pixel / 110 dpi
Display Color B/W
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Coin Battery CR2450 x 2
Battery Life 1.5 Years @Freezer Temperature (1 updates/Day)
Operating Temperature -25°C ~ 10°C / -13°F~50°F
Size 65.1mm x 34 mm x 12.4mm (H)
Weight 18.3g

AP

AP Specification

Model IDAP1A
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee)
INDICATOR LED Color Indicate
Red Power
Green Ethernet link
Amber Ethernet Activate
Blue / Red Operation Active(Blue) / Error(Red)
Network Ethernet (10/100 Base)
Wireless
Communication
IEEE 802.15.4 Based on 2.4GHz ISM Band,
Data Rate: 250Kbps,
Service Area : Radius Max. 30m (Line of Sight)
Antenna External Dipole Antenna, 2.5dBi
Approval FCC,KC,CE
ROHS ROHS Compliance
Power DC 5V / 3A
PoE IEEE802.3af Class 1
Operating Temperature Temperature -25°C ~ 40°C / -13°F~104°F
Operating Humidity 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 210mm x 210mm x 40mm(H)
Weight 445g

Remote Control

Remote Control Specification

Model IDRM1A
Display LED 표시 (Red : Click / Blue : Link)
Wireless Communication IEEE 802.15.4 Based on 2.4GHz ISM Band, Data Rate: 250Kbps, Service Area : Radius Max. 30m (Line of Sight)
Maximum Transmit Power 2.4GHz - 802.15.4 (Zigbee) 10 dBm (10mW)
Approval FCC, KC, CE
ROHS ROHS Compliance
Power Battery 12V 23A
Operating Temperature 0°C ~ 50°C / 32°F~122°F I B/W/R, B/W/Y : 5°C ~ 40°C / 41°F~104°F
Size 92mm x 40mm x 15mm
Weight 40g
